INDO POWER 30FNX

This powerful beast has:

a load capacity of 30T, with a maximum operating capacity of 20060 KG. This crane has a four cylinder, water cooled diesel engine with a 60 HP engine, this crane has a boom height of 24.31 m with a horizontal reach of 22 m. It has a heavy duty transmission for crane application, sliding mesh spur teeth gearbox, 8 forward and 2 reverse speeds with high and low selector and articulated power steering that is hydraulically controlled through two double acting hydraulic rams.

Safety Features:

Fail-safe brakes on hoist.
Counter balance valve for hose failure protection
Self adjusting hook block.

Make Inquiry

Why Indo Power 30FNX

Crane Features

Cabin With Better Egonomics

Four Side More Visibility Cabin

Heavy Duty Winch

High Ground Clearance

Heavy Drag Duty Winch

Easy for Maitenance

Crane Specifications

Engine
Model & Type	Six Cylinder, TCIC, water cooled diesel engine rated power 137 hp@2200 rpm.
Transmission
Type	Heavy duty transmission for crane application. Synchromesh gearbox with auxiliary gearbox, Eight forward and two reverse speeds with high and low selector.
Axle
Front	Rigidly mounted
Rear	Mounted with two semielliptical springs.
Speed (Top)	40 kmph
Gradeability	40% unladen
Clutch	Single plate, heavy duty dry friction type clutch plate especially designed for crane application.
Drive	2 wheel drive
Steering
Type	Articulated power steering, hydraulically controlled through two double acting hydraulic rams.
Articulation	upto 35°
Turning Radius	10 m
Brakes
Front wheel	Fully air operated 'S' cam dual circuit brakes on front and rear wheels.
Parking	Air operated fail safe brakes on front and rear wheels.
Tyres
Front	12.00x24 - 20 PR (4 Nos.)
Rear	14.00x25 - 20 PR (2 Nos.)
Wheel Base	5.0 m
Wheel Tracks
Front	1980 mm
Rear	1840 mm
Boom
Telescoping	5 part boom, 4 part hydraulically powered & semi synchronised. 5th part power extended and manually pinned for safety.
Derricking	Through two double acting cylinders.
Hoist Mechanism
Hoist	Eight falls with fail safe brake.
Hydraulic System
Pump	Vane/gear type hydraulic pump.
Control Valve	5/6 spool control valve double acting with built in pressure relief valve for trouble free operation.
Electrical System
Type	12V, DC Single battery negative earth.
Overall Dimensions
Length	11350 mm
Width	2778 mm
Height	3286 mm
Operating Weight	20060 Kgs

Download Bronchure

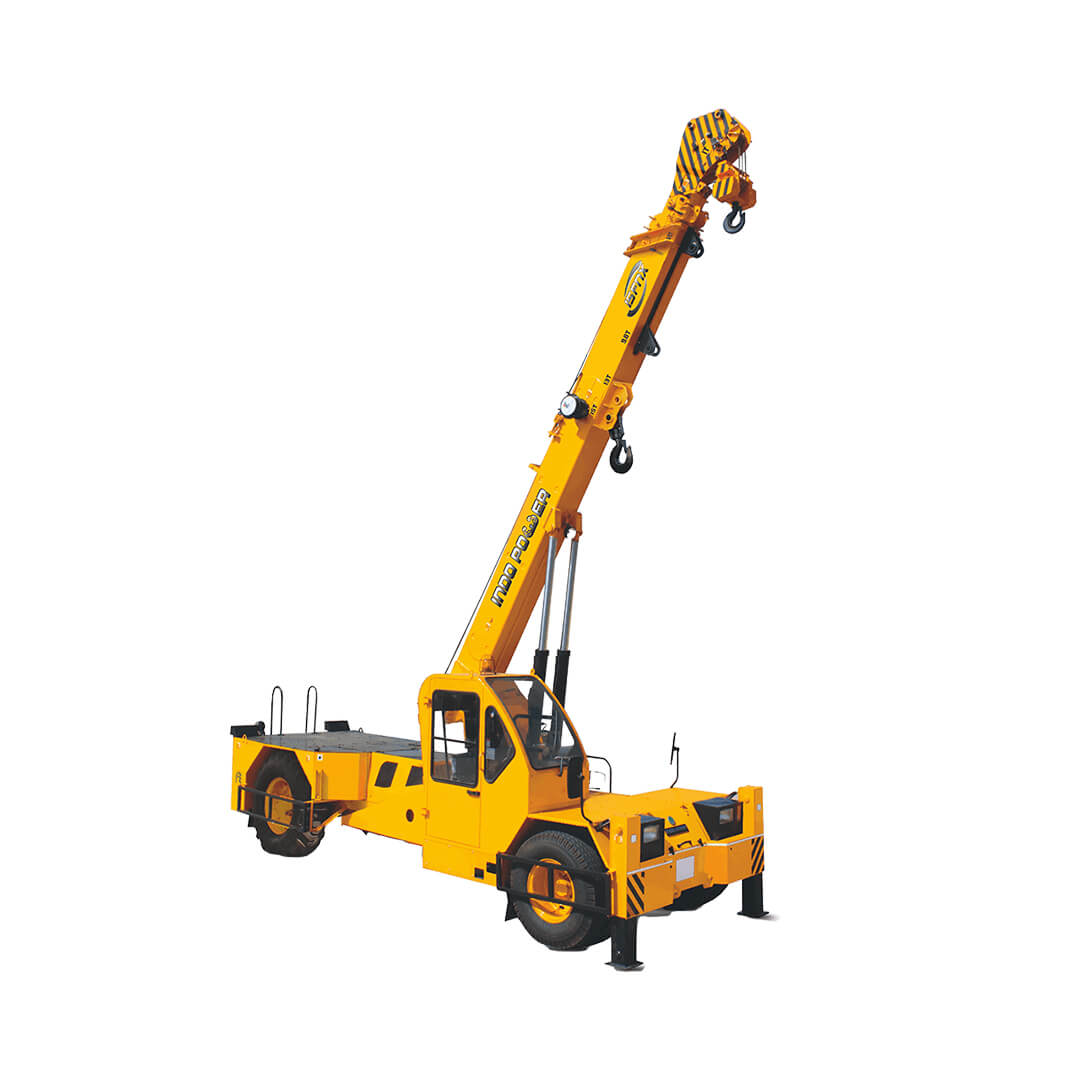

15FNX properties

INDO POWER CRANE

Load capacity:	17T
Boom Height:	19.2 m, 22.2 m with fly zib
Horizontal reach	16.6 m, 19.7 m with fly zib
Engine Power:	60 hp@2200 rpm
