High ground clearance, 4-part telescopic boom and a maximum capacity of 20T, this crane is powered with the BS-IV 101 HP engine.
| Engine | FN |
|---|---|
| Model & Type | 101 hp@2200 rpm, DI, TCIC water cooled diesel engine. |
| Transmission | |
| Type | Heavy duty transmission for crane application. Synchromesh gearbox with auxillary gearbox, Eight forward and two reverse speeds with high and low selector. |
| Axle | |
| Front | Rigidly mounted |
| Rear | Mounted with two semielliptical springs. |
| Speed (Top) | 42 kmph |
| Gradeability | 35% unladen |
| Clutch | Single plate, heavy duty dry friction type clutch plate especially designed for crane application. |
| Drive | 4 wheel drive |
| Steering | |
| Type | Articulated power steering, hydraulically controlled through two double acting hydraulic rams. |
| Articulation | upto 40° |
| Turning Radius | 7.0 m |
| Brakes | |
| Front & Rear | Fully air operated ‘S’ cam dual circuit brakes on front & rear axles. |
| Parking | Air operated fail safe brakes on front & rear wheels. |
| Tyres | |
| Front & Rear | 11.00x20 - 16 PR (8 Nos.) |
| Wheel Base | 4 m |
| Wheel Tracks | |
| Front & Rear | 1830 mm (center of twin wheels) |
| Boom | |
| Telescoping | 4 part boom, 3 part hydraulically powered & fully synchronised. 4th part power extended and manually pinned for safety. |
| Derricking | Through two double acting cylinders. |
| Hoist Mechanism | |
| Hoist | Six falls with fail safe brake. |
| Hydraulic System | |
| Pump | Vane type hydraulic pump. |
| Control Valve | 5/6 spool control valve double acting with built in pressure relief valve for trouble free operation. |
| Electrical System | |
| Type | 12V, DC |
| Overall Dimensions | |
| Length | 10685 mm |
| Width | 2670 mm |
| Height | 3035 mm |
| Operating Weight | 14770 Kgs |
| Load capacity: | 20T |

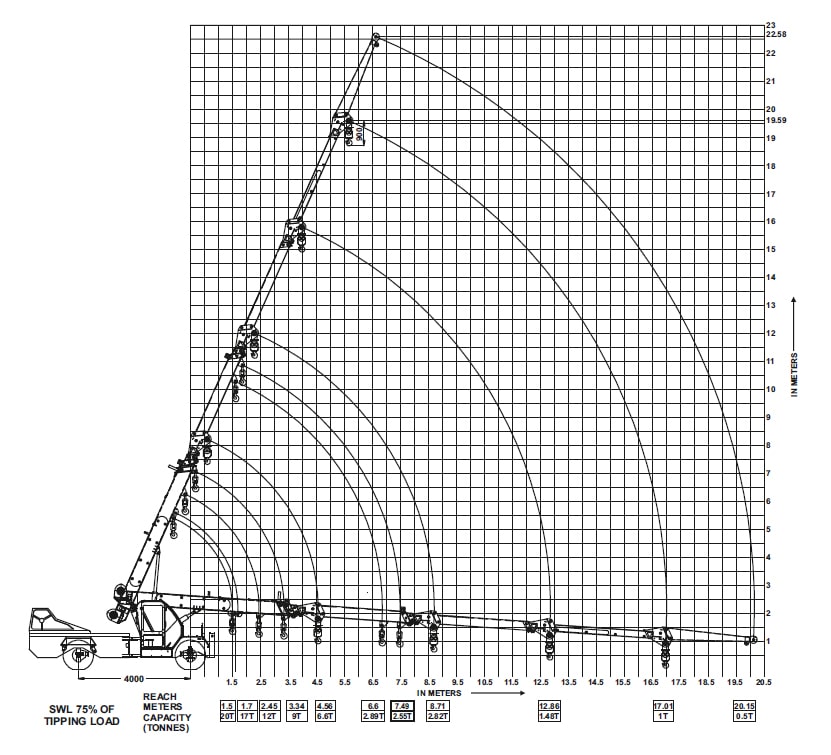

| Boom Height: | 19.59 m, 22.58 m with fly zib |
| Horizontal reach | 17 m, 20.15 m with fly zib |
| Engine Power: | 101 hp@2200 rpm 101 hp@2300 rpm |
