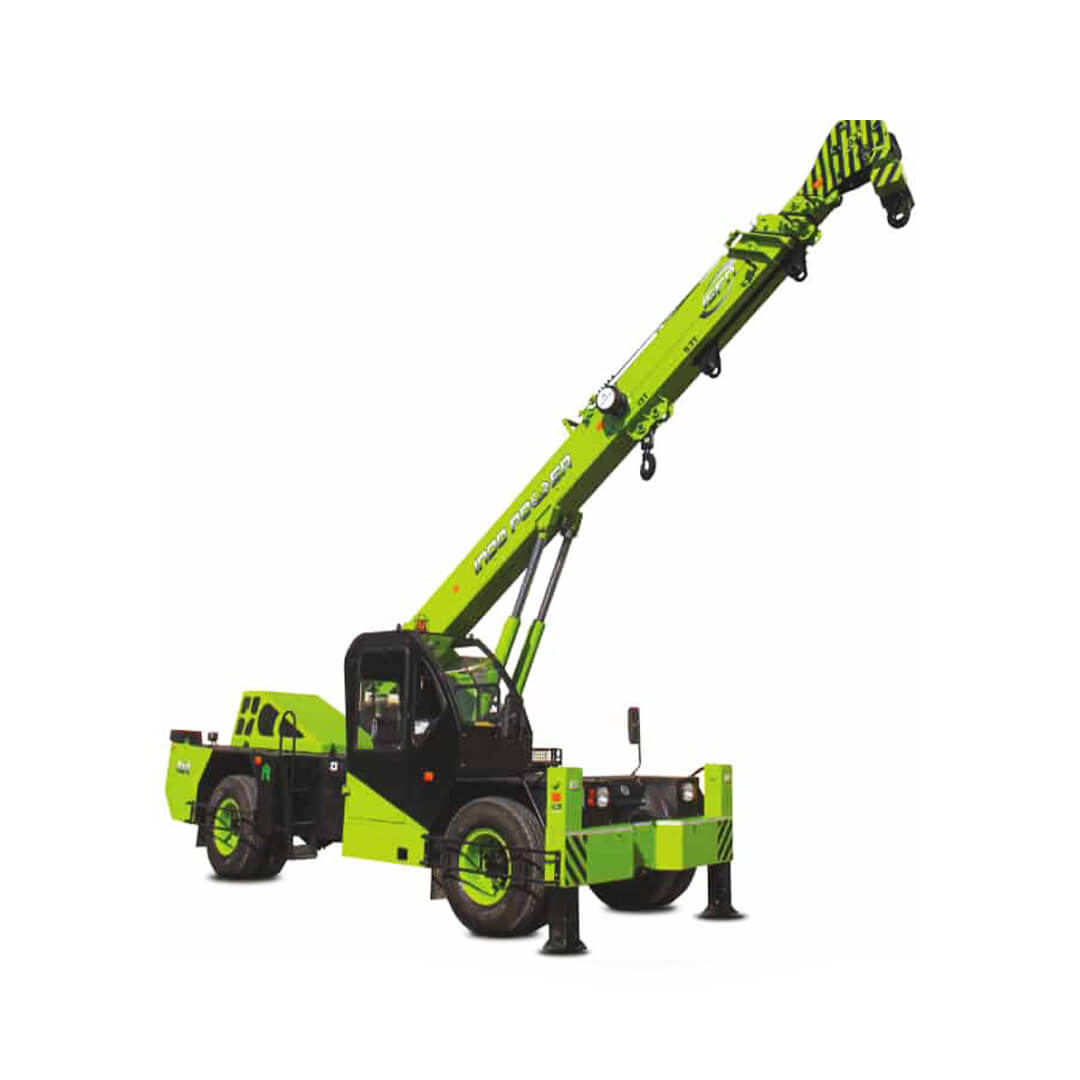

This crane is powered with the BS-IV engine. With 4 side visibility, high torque engine and the shortest turning radius, this crane gives the best stability. Low maintenance, less fuel consumption, 4 wheel drive along with a well articulated hydraulic power steering ensures better performance.
| Engine | 23FN |
|---|---|
| Model & Type | 74 kW/101 hp @ 2200 rpm, Volvo - Eicher make CEV BS IV Diesel Engine, TCI-High Pressure Common Rail System (HPCR) Technology, Turbo charged water cooled, ECU control engine management system |
| Transmission | |
| Type | Heavy duty synchromesh transmission with auxillary gearbox, ten forward and two reverse speeds with high and low selector. |
| Axle | |
| Front | Rigidly mounted |
| Rear | Mounted with two semielliptical springs. |
| Speed (Top) | 48 kmph |
| Gradeability | 40% unladen |
| Clutch | Hydraulically pneumatically actuated, single plate, heavy duty dry friction type clutch plate. |
| Drive | 4 wheel drive |
| Steering | |
| Type | Articulated power steering, hydraulically controlled through two double acting hydraulic rams. |
| Articulation | upto 40° |
| Turning Radius | 7.0 m |
| Brakes | |
| Front & Rear | Fully air operated ‘S’ cam dual circuit brakes on front & rear axles. |
| Parking | Air operated fail safe brakes on front & rear wheels. |
| Tyres | |
| Front & Rear | 12.00x20 - 18 PR (8 Nos.) |
| Wheel Base | 4 m |
| Wheel Tracks | |
| Front & Rear | 1830 mm (center of twin wheels) |
| Boom | |
| Telescoping | 4 part boom, 3 part hydraulically powered & fully synchronised. 4th part power extended and manually pinned for safety. |
| Derricking | Through two double acting cylinders. |
| Hoist Mechanism | |
| Hoist | Hydraulically operated with Six falls rope built in fail safe brake |
| Hydraulic System | |
| Pump | Vane type hydraulic pump. |
| Control Valve | 5/6 spool control valve double acting with built in pressure relief valve for trouble free operation. |
| Electrical System | |
| Type | 12V, DC |
| Overall Dimensions | |
| Length | 10300 mm |
| Width | 2490 mm |
| Height | 3010 mm |
| Operating Weight | 20010 Kgs |

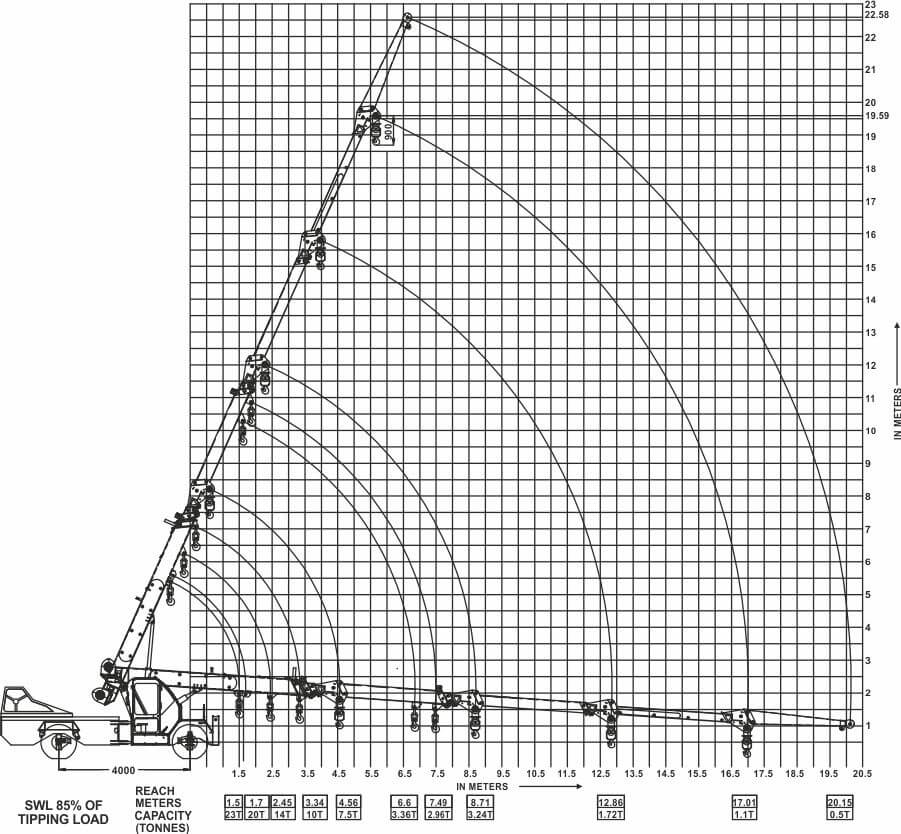

| Load capacity: | 23t |
| Boom Height: | 19.59 m, 22.58 m with fly jib |
| Horizontal reach | 17 m, 20.15 m with fly jib |
| Engine Power: | 101 hp @ 2200 rpm |
