a maximum load capacity of 15T and is powered with the BS-IV 76 PS engine. With 4 side visibility, high torque engine and the shortest turning radius, this crane gives the best stability. Low maintenance, less fuel consumption, 4 wheel drive along with a well articulated hydraulic power steering ensures stability
| Engine | |
|---|---|
| Model & Type | 75 hp (76 PS)@2200 rpm, DI, TCIC, water cooled diesel engine. |
| Transmission | |
| Type | Heavy duty transmission for crane application. Synchromesh gearbox with auxillary gearbox, Eight forward and two reverse speeds with high and low selector. |
| Axle | |
| Front | Rigidly mounted |
| Rear | Mounted with two semielliptical springs. |
| Speed (Top) | 50 kmph |
| Gradeability | 35% unladen |
| Clutch | Single plate, heavy duty dry friction type clutch plate especially designed for crane application. |
| Drive | 4 wheel drive |
| Steering | |
| Type | Articulated power steering, hydraulically controlled through two double acting hydraulic rams. |
| Articulation | upto 40° |
| Turning Radius | 7.0 m |
| Brakes | |
| Front & Rear | Fully air operated ‘S’ cam dual circuit brakes on front & rear axles. |
| Parking | Air operated fail safe brakes on front & rear wheels. |
| Tyres | |
| Front & Rear | 11.00x20 - 16 PR (8 Nos.) |
| Wheel Base | 4 m |
| Wheel Tracks | |
| Front & Rear | 1820 mm (center of twin wheels) |
| Boom | |
| Telescoping | 4 part boom, 3 part hydraulically powered & fully synchronised. 4th part power extended and manually pinned for safety. |
| Derricking | Through two double acting cylinders. |
| Hoist Mechanism | |
| Hoist | Six falls with fail safe brake. |
| Hydraulic System | |
| Pump | Vane type hydraulic pump. |
| Control Valve | 5/6 spool control valve double acting with built in pressure relief valve for trouble free operation. |
| Electrical System | |
| Type | 12V, DC |
| Overall Dimensions | |
| Length | 10434 mm |
| Width | 2670 mm |
| Height | 3035 mm |
| Operating Weight | 13950 Kgs |
| Load capacity : | 15T |

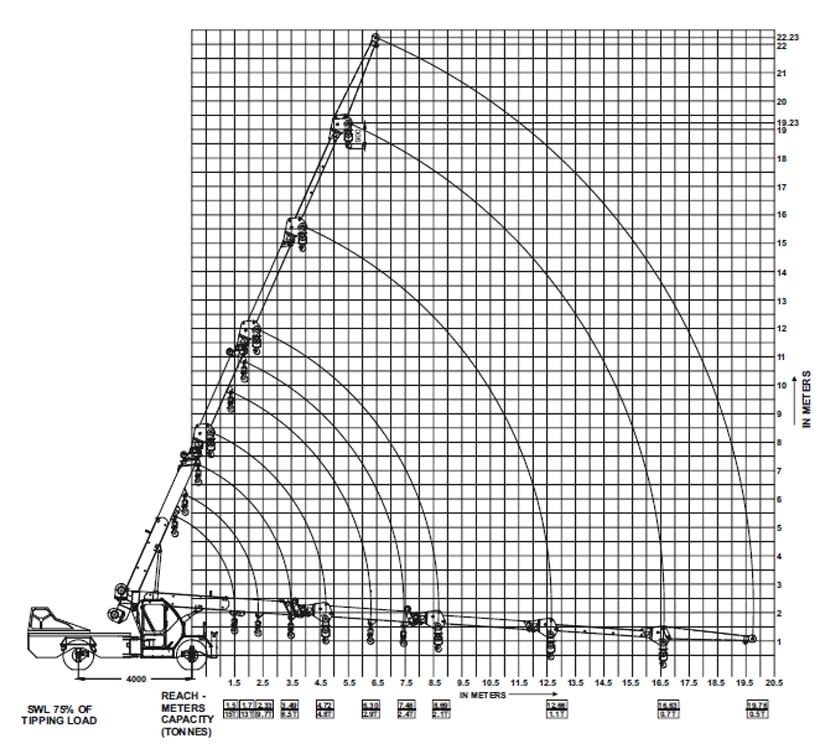

| Boom Height: | 19.2 m, 22.2 m with fly zib |
| Horizontal reach | 16.6 m, 19.7 m with fly zib |
| Engine Power: | 101 hp@2300 rpm |
