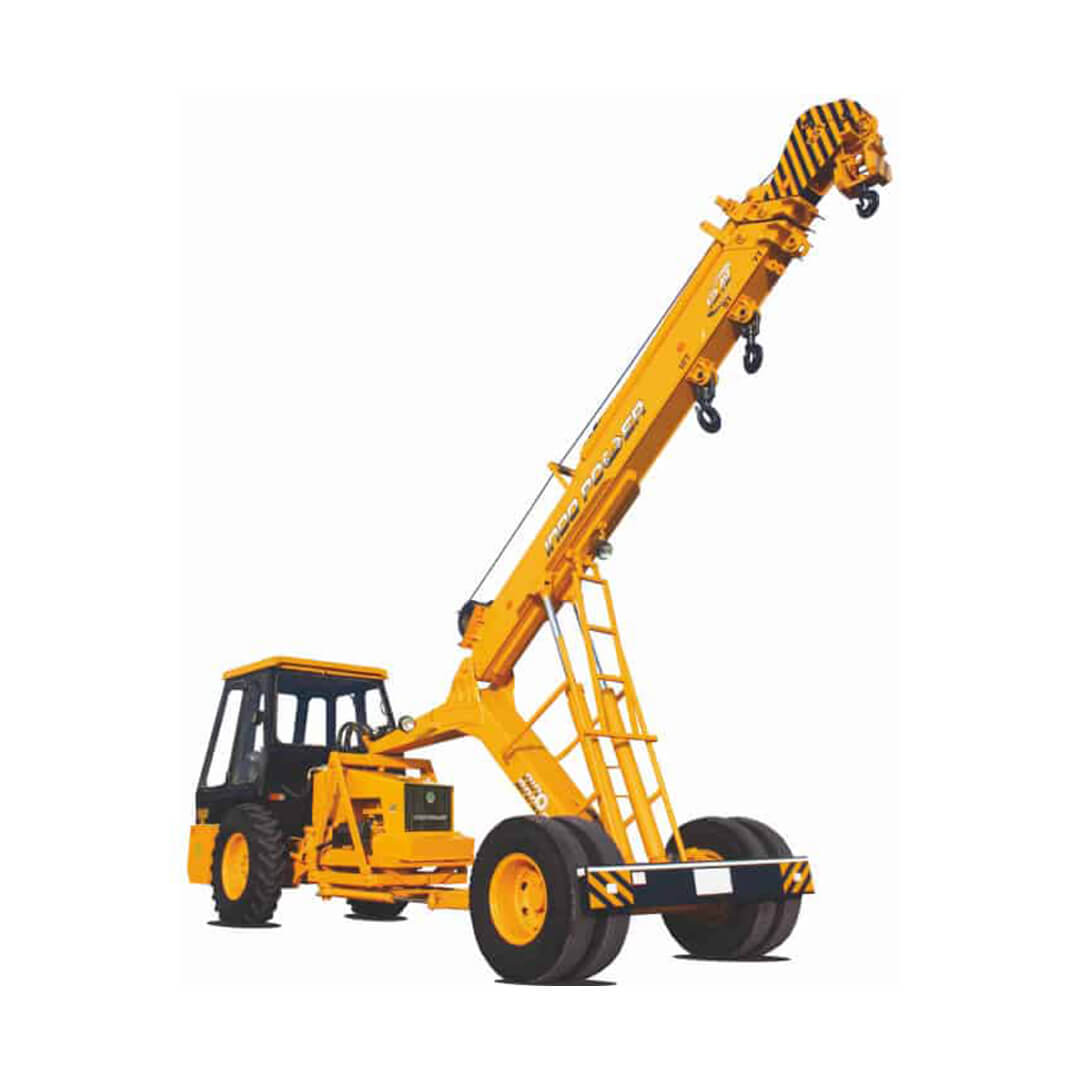

A 14T capacity and is powered by a BS III 50 HP 4 cylinder engine. This machine is known for its outstanding performance, heavy duty structure, unmatched transmission and top class safety.
| Engine | FN | FNT | |
|---|---|---|---|
| Model & Type | 101 hp@2200 rpm, DI, TCIC water cooled diesel engine. | 101 hp@2300 rpm DI, TCIC water cooled diesel engine. | |
| Transmission | |||
| Type | Heavy duty transmission for crane application. Synchromesh gearbox with auxillary gearbox, Eight forward and two reverse speeds with high and low selector. | ||
| Axle | |||
| Front | Rigidly mounted | ||
| Rear | Mounted with two semielliptical springs. | ||
| Speed (Top) | 42 kmph | 50 kmph | |
| Gradeability | 35% unladen | ||
| Gradeability | 35% unladen | ||
| Gradeability | 35% unladen | ||
| Steering | |||
| Type | Articulated power steering, hydraulically controlled through two double acting hydraulic cylinders. | ||
| Articulation | upto 53° | ||
| Turning Radius | 6.5 m | ||
| Operating Time | |||
| Steering (lock to lock) | 9-11 Secs | 9-11 Secs | 9-11 Secs |
| Boom Raising | 18-20 Secs | 18-20 Secs | 18-20 Secs |
| Boom Lowering | 13-15 Secs | 13-15 Secs | 13-15 Secs |
| Telescoping Extension in | 16-18 Secs | 16-18 Secs | 15-18 Secs |
| Telescoping Extension out | 21-23 Secs | 21-23 Secs | 19-21 Secs |
| Hoist Line Speed | 55 m/min. (Single Line) | ||
| Brakes | |||
| Front wheel | Pneumatically assisted hydraulic drum brakes. | ||
| Rear wheel | Mechanical disc brakes, actuated through slave cylinders. | ||
| Parking | Mechanically actuated at rear wheels. | ||
| Tracks | |||
| Front | 1930 mm (center of twin wheels) | ||
| Rear | 1630 mm (center of wheels) | ||
| Tyres | |||
| Front | 11.00x20 - 16 PR (4 Nos.) | ||
| Rear | 13.00x24 - 12 PR (2 Nos.) | ||
| Boom | |||
| Telescoping | 4 part, 2nd & 3rd parts are actuated by hydraulic cylinders and 4th part by hydraulic assisted rope. | 3 part, box type hydraulically | |
| Derricking | Through two double acting cylinders. | ||
| Hoist Mechanism | |||
| Hoist | Four falls / Six falls with fail safe brake. | ||
| Hydraulic System | |||
| Pump | Vane type hydraulic pump. | ||
| Control Valve | 4 spool control valve with built in pressure relief valve for trouble free operation. | ||
| Hydraulic Filter | Suction line has a 100 mesh inline strainer while return line has 25 micron full flow filter. | ||
| Electrical System | |||
| Type | 12V Single battery negative earth. | ||
| Capacity | |||
| Fuel | 60 Litres | ||
| Hydraulic | 120 Litre | ||
| Engine oil | 7.5 Litres | ||
| Gear oil | 45 Litres | ||
| Operating Weight | 10430 Kg | 10030 Kg | 9880 Kg |

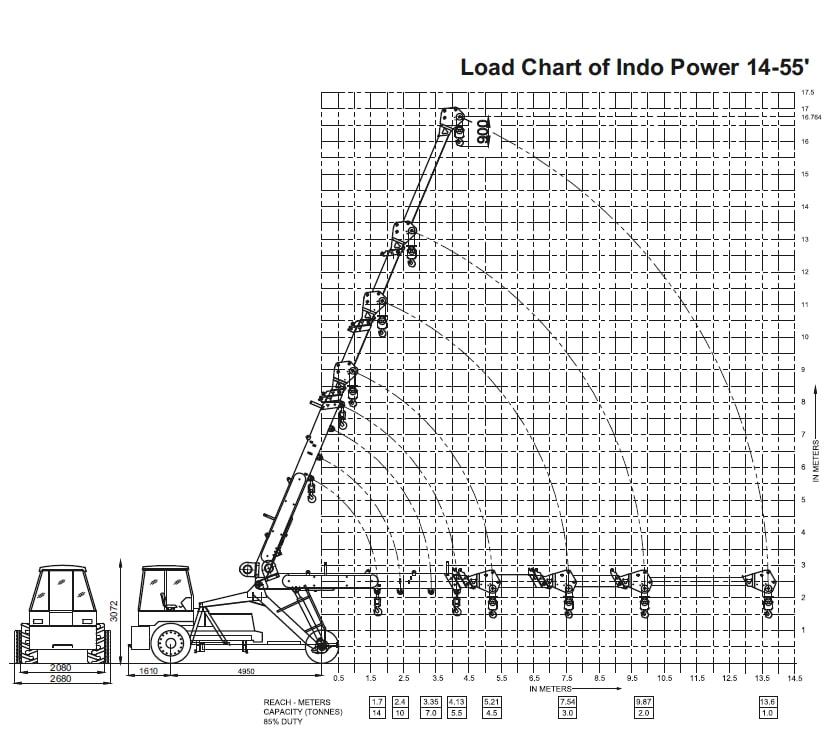

| Load capacity: | 14 T |
| Boom Height: | 16.76 m, 12.81 m, 11.16 m |
| Horizontal reach | 13.7 m, 9.8 m, 7.9 m |
| Engine Power: | 50 hp@2200 rpm |
