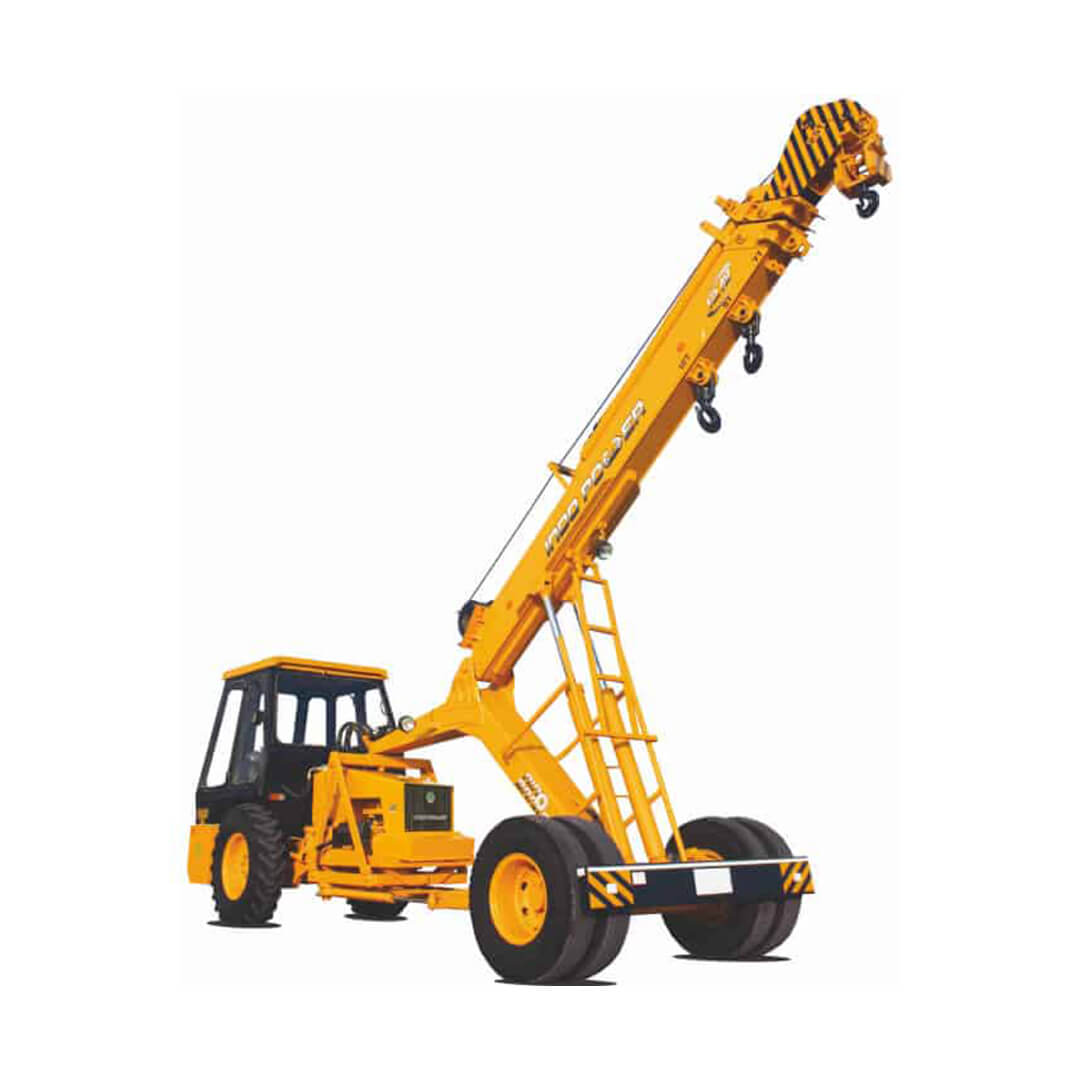

a maximum load capacity of 12T and is powered by BS-III 50 HP Engine less maintenance and low fuel consumption makes this machine unique and reliable in this segment.
| Engine | Indo Power 12-42' | Indo Power 12-36'' | Indo Power 12-29' |
|---|---|---|---|
| Model & Type | Indo Farm - 3052 DI; Three Cylinder, Water Cooled Diesel Engine Rated power 50 hp max @2200 rpm. | ||
| Transmission | |||
| Type | Heavy duty transmission for crane application. Synchromesh gearbox with auxiliary gearbox, Eight forward and two reverse speeds with high and low selector. | ||
| Speed (Top) | 30 kmph. | ||
| Clutch | Single plate, heavy duty dry friction type clutch plate especially designed for crane application. | ||
| Steering | |||
| Type | Articulated power steering, hydraulically controlled through two double acting hydraulic cylinders. | ||
| Articulation | upto 53° | ||
| Turning Radius | 6.5 m | ||
| Operating Time | |||
| Steering (lock to lock) | 9-11 Secs | 9-11 Secs | 9-11 Secs |
| Boom Raising | 18-20 Secs | 18-20 Secs | 18-20 Secs |
| Boom Lowering | 13-15 Secs | 13-15 Secs | 13-15 Secs |
| Telescoping Extension in | 16-18 Secs | 15-18 Secs | 05-07 Secs |
| Telescoping Extension out | 21-23 Secs | 19-21 Secs | 09-11 Secs |
| Hoist Line Speed | 55 m/min. (Single Line) | ||
| Brakes | |||
| Front wheel | Pneumatically assisted hydraulic drum brakes. | ||
| Rear wheel | Mechanical disc brakes, actuated through slave cylinders. | ||
| Parking | Mechanically actuated at rear wheels. | ||
| Tracks | |||
| Front | 1930 mm (center of twin wheels) | ||
| Rear | 1630 mm (center of wheels) | ||
| Tyres | |||
| Front | 11.00x20 - 16 PR (4 Nos.) | ||
| Rear | 13.00x24 - 12 PR (2 Nos.) | ||
| Boom | |||
| Telescoping | 3 part, box type hydraulically operated. | 2 part, box type hydraulically | |
| Derricking | Through two double acting cylinders. | ||
| Hoist Mechanism | |||
| Hoist | Four falls / Six falls with fail safe brake. | ||
| Hydraulic System | |||
| Pump | Vane type hydraulic pump. | ||
| Control Valve | 4 spool control valve with built in pressure relief valve for trouble free operation. | ||
| Hydraulic Filter | Suction line has a 100 mesh inline strainer while return line has 25 micron full flow filter. | ||
| Electrical System | |||
| Type | 12V Single battery negative earth. | ||
| Capacity | |||
| Fuel | 60 Litres | 60 Litres | |
| Hydraulic | 120 Litre | 100 Litres | |
| Engine oil | 7.5 Litres | 7.5 Litres | |
| Gear oil | 45 Litres | 45 Litres | |
| Operating Weight | 8950 Kg | 8750 Kg | 8410 Kg |
| Load capacity: | 12T |
| Boom Height: | 12.9 m, 11.05 m, 8.86 m |
| Horizontal reach | 9.94 m, 7.83 m, 5.34 m |
| Engine Power: | 50 hp@2200 rpm |
