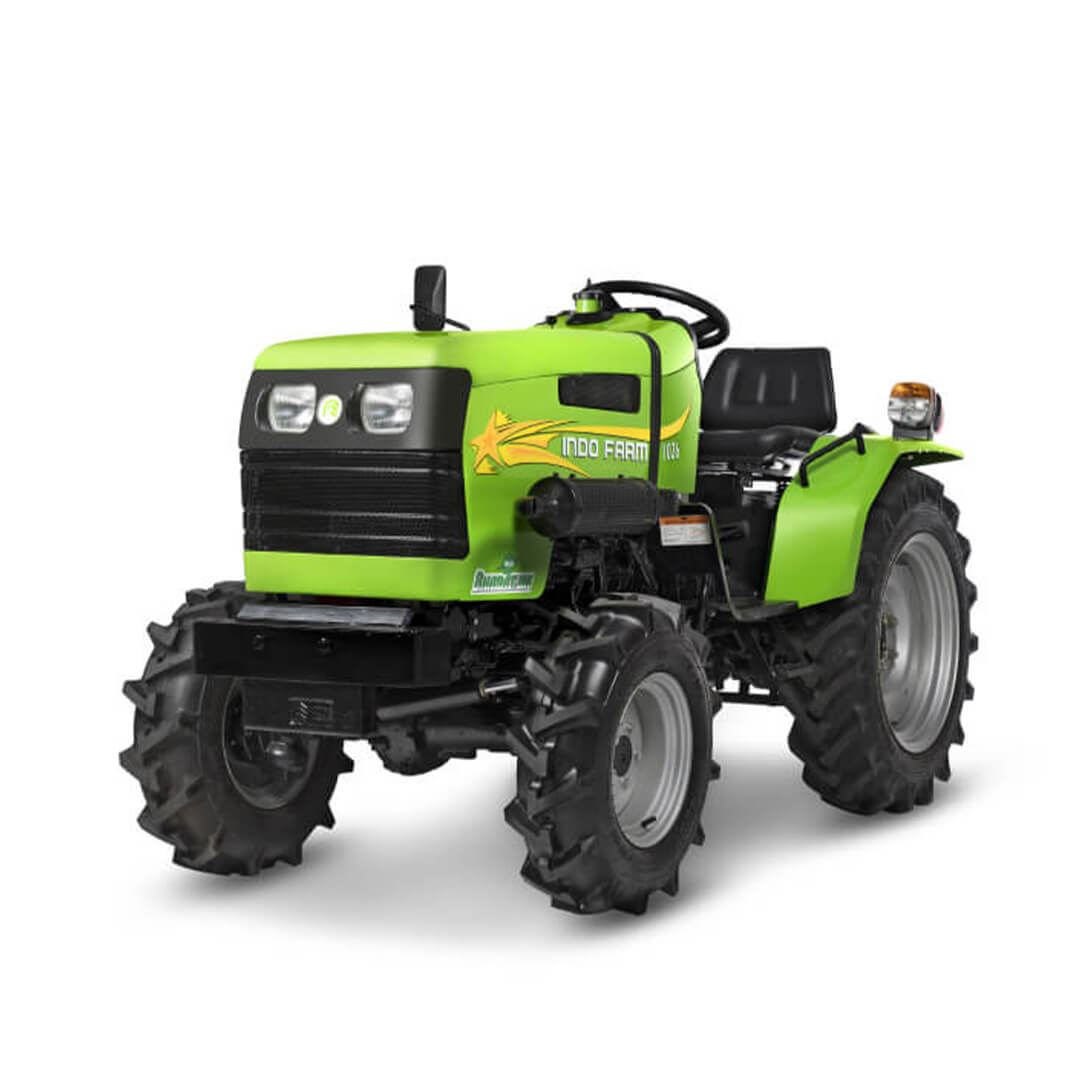

This dynamic tractor provides you with a 26 HP engine, 500 KG lift capacity, power steering and oil immersed brakes, powered by a fuel-efficient engine that is compatible and robust in use and applications. Indo Farm 1026 has a 4 wheel drive that helps you in completing all tasks at ease. The highly efficient transmission of the tractor ensures more PTO power delivering superior performance in rotary implements.
Make Inquiry
| H.P. Category | 26 | |
|---|---|---|
| Engine Model | Mitsubishi | |
| Type | Diesel, Four Stroke IDI Engine | |
| No. of Cylinders | 3 | |
| Bore/Stroke | 78/92 mm | |
| Compression Ratio | 22:01 | |
| Rated Speed | 2700 RPM | |
| Max. Torque Speed | 2000 RPM | |
| Air Cleaner | Dry Type | |
| Fuel Pump | Inline, Denso Japan | |
| Cooling System | Water cooled | |
| Clutch System | Single Clutch | |
| Hyd. Pump | Gear Type | |
| Lifting Capacity | 500 kg at Lower Link Ends | |
| Electrical System | 12 Volts-65 Ah-Battery Self Starter Motor & Alternator |
|
| Tyre | ||
| Front | 6.00 x 12 | 5.00 x 12 |
| Rear | 8.3 x 20 | 8 x 18 |
| Wheel Track | Front : 820 , Rear : 830 | |
| Measurement | ||
| Length | 2680 mm | |
| Width | 1050 mm | |
| Height - upto steering | 1260 mm | |
| Min. Ground Clearance | 210 mm | |
| Weight | 844 kg | |
| P.T.O. | ||
| PTO Power (ps) | 21.8@2700 Engine RPM | |
| No. of Splines | 6 | |
| PTO Speed | 630/930/1605 RPM | |
| Driver's Seat | Adjustable | |
| Transmission | ||
| No. of Gear Speeds | 6 Forward 2 Reverse | |
| Steering | Mechanical - Recirculating ball type (optional) Power steering |
|
| Steering wheel dia | 380 mm | |
| Min. Turning radius | 2.2 m | |
| Brake Type | Oil immersed brake | |
| Actuation | Mechanical, independent right/left or combined | |
| Parking | Through hand lever, by locking brake pedals |
This FAQ section addresses some common questions about the IndoFarm Tractor 1026 DI. If you can't find the answer to your inquiry here, please don't hesitate to Contact Us.
Yes, the IndoFarm 1026DI's compact size and maneuverability make it ideal for small farms with limited space. Its horsepower is well-suited for powering various tasks on a smaller scale.
Yes, the Indo Farm 1026 DI is a powerful and versatile tractor capable of tackling a wide range of tasks.
Contact our sales representatives who will confirm if renting the 1026 DI is available in your area and provide details on rental rates and terms. Click here to Visit our contact page.
